Dassault Mirage G8-01- Musée de l'Air et de l'Espace - Lebourget - June 2017

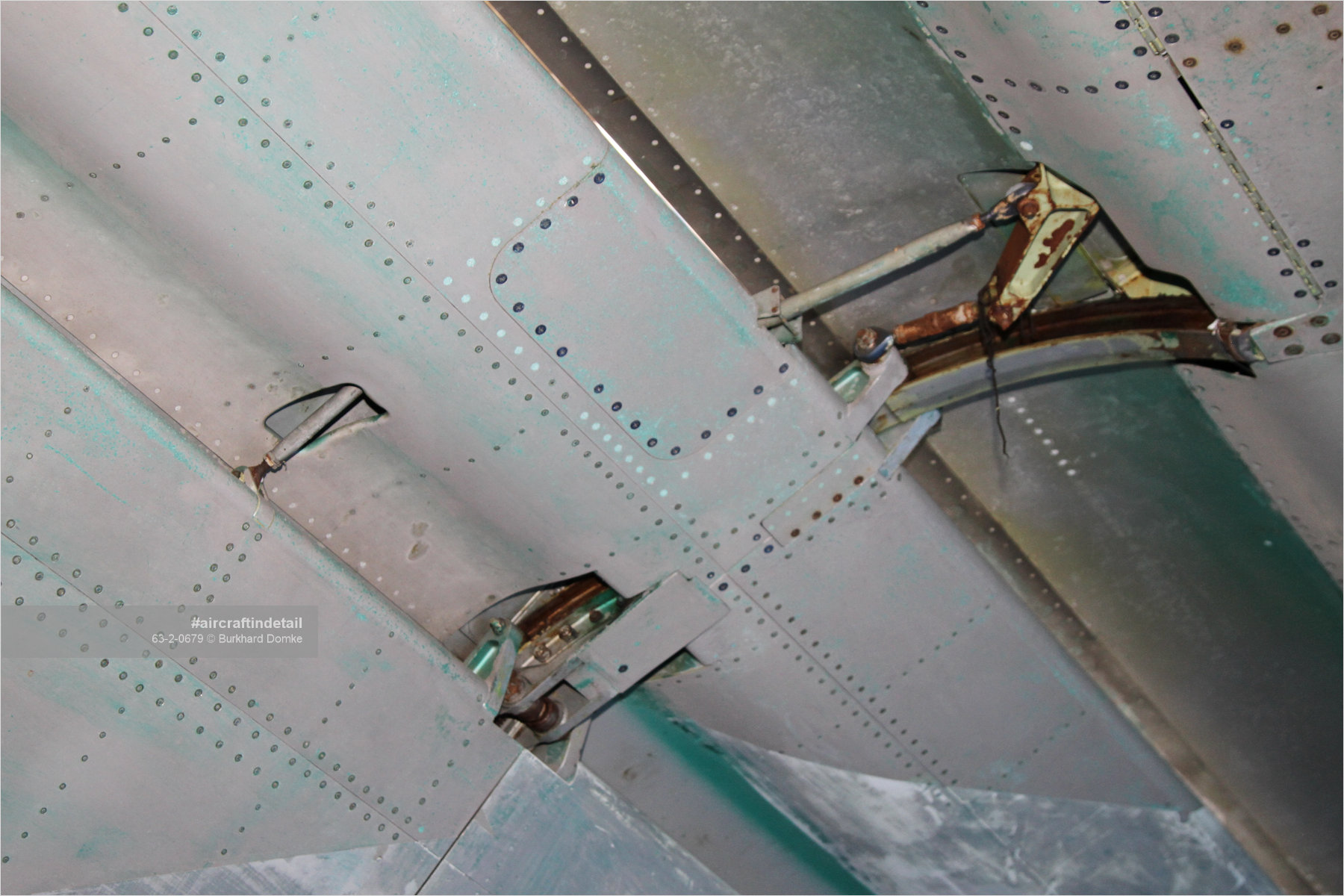

Double-slotted fowler flap close-up, mid-wing. Flap segments are mounted on rollers sliding along curved rails, actuated by bellcranks and push-pull rods. Note the small cove flap which is passively pushed open.
